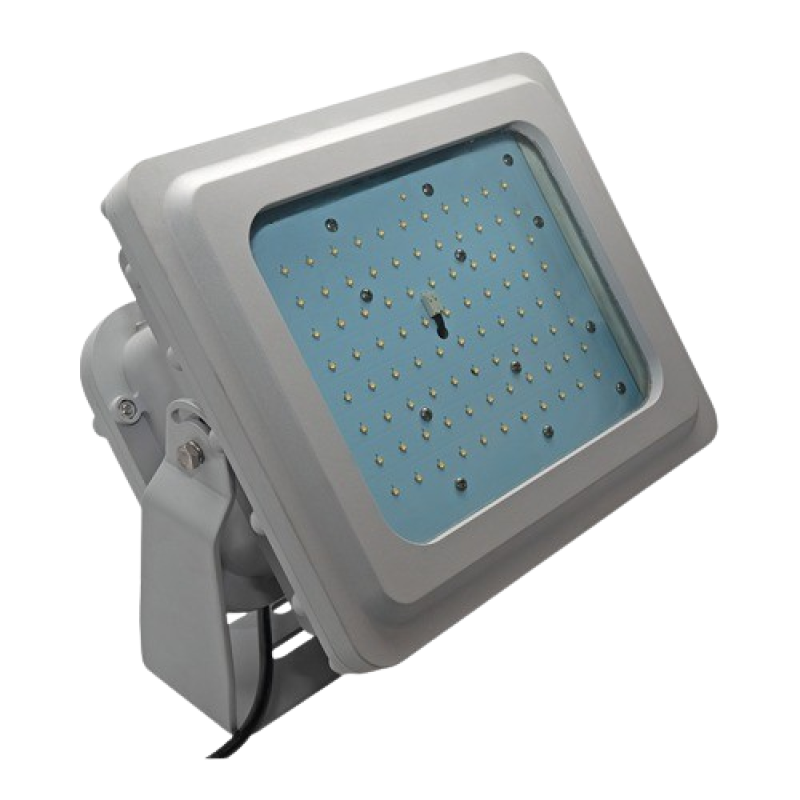

Hazardous Location C1D2 LED Explosion Proof Flood

Product Description

The Hazardous Location C1D2 LED Explosion Proof Flood luminaire is available with a clear tempered glass lens.

The typical commercial applications for this product include:

• Industrial facilities

• Oil, gas, and painting facilities

• Manufacturing

• Auto service facilities

Specifications and Features

Housing

Heavy-Duty, Die-Cast Aluminum Housing with ¾" Stainless Steel Close-Up Plugs for Wiring Entrance Conduits and Fittings.

Listing & Ratings

ETL Listed for Hazardous Locations Per UL844 as Follows: Class 1, Division 2 Groups A, B, C, D; T4 Temperature Rating, -25°C to +50°C Ambient. Suitable for Wet Locations, Sealed LED Compartment

Finish

Powdercoat Finish Over a Chromate Conversion Coating.

Lens

Clear Tempered Glass Lens

Mounting Options

Mount with Stamped Steel Adjustable Yoke. Includes 3´ 16/3 SJOOW Cord and Rated Connector. Rated for 6 #12 AWG 90°C for Through Wiring.

LED

Aluminum Metal Core Boards Wattage Array: 132.2w, System: 140.2w

Driver

Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Warranty

7-Year Warranty
